Square Root Fab

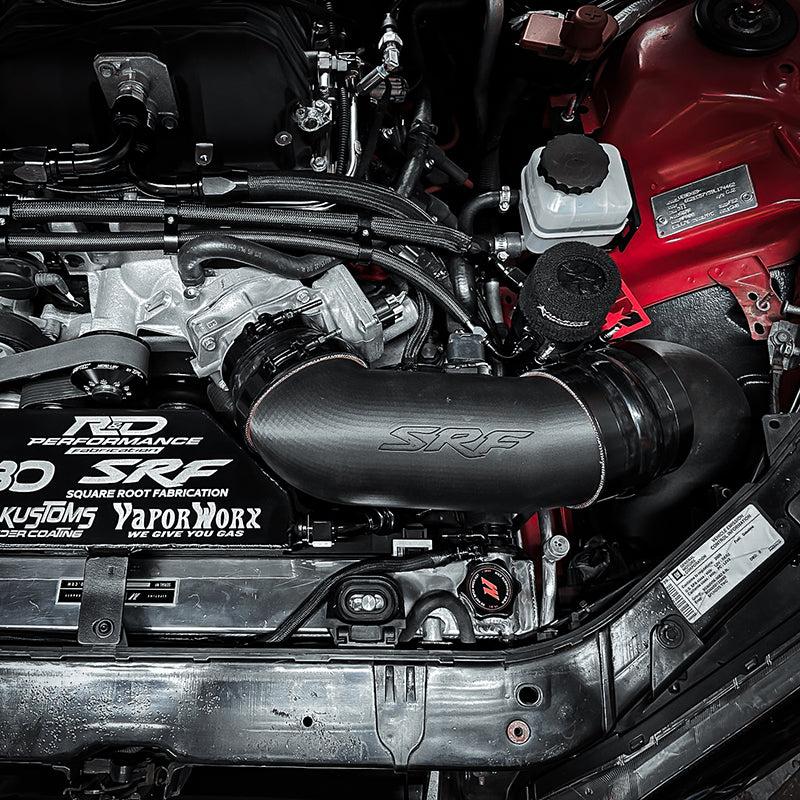

5" LSA Cold Air Intake System

5" LSA Cold Air Intake System

Regular price $749.99 USD
Regular price Sale price $749.99 USD
Sale Sold out
Shipping calculated at checkout.
  • Full 5" Intake Tube
  • Customizable to Your Needs
  • Printed using Proprietary Nylon/Carbon Fiber filament
  • Corrugated walls acts as heat barrier
  • Fits w/Larger Aftermarket Radiator
  • Single 1/4" Port for PCV
  • Can be Powder Coated or Painted
  • Lifetime Warranty Against Manufacturer Defect

Lead Times: Intakes are printed to order and can take up to 10-15 business days to ship.

Production Limitations: This product will have a limited production schedule as to not accrue a large backlog of orders.


Our new 5" LSA, Cold-Air Intake is a thing of wonders. Using the latest technology, we were able to deliver a full 5" intake that is able to deliver cool air from beneath the subframe and keep it cool the whole way through.

Their proprietary Nylon/Carbon Fiber Filament is so heat resistant and strong that you can actually powder coat it. Yes, you read that right, you can Powder-Coat this printed intake! Additionally, we corrugated the walls, with a thicker inner and outer layer, the corrugated inner wall design acts as an insulated heat barrier. Keeping the air inside consistently cooler throughout the run of the intake.


Since these are printed to order, SRF can offer customization options not before available, like:

  • Additional Ports
  • Your Choice of MAF Style


  • Intake Tubes
  • 5" Hump Coupler
  • Throttle Body Coupler
  • Clamps
  • Filter


  • Lifetime Manufacturer Warranty against defect, applies to original purchaser only.


  • Pontiac G8 2008-2009
  • Chevy SS Sedan 2014-2017
  • Chevy PPV 2011-2017

*MAF Sensor Not Included, Filter element shown subject to change.
**Due to diameter of intake, Fitment will be tight near the subframe, test fit prior to painting/powder coating, access to headlight will be limited once installed, tube may rest on frame rail and/or fender liner.
